Fibre Optic Cabling for Warehouses in Greater Manchester: Complete Guide

Fibre Optic Cabling In Greater Manchester

Planning fibre optic cabling for a warehouse in Greater Manchester can feel like a big step, especially when your whole operation depends on fast and stable data. In a busy distribution centre, everything is connected. Handheld scanners, automated conveyors, CCTV, access control and stock systems all rely on the network. When the connection slows down, productivity drops, orders back up and frustration quickly builds. With the right design, that situation is completely avoidable.

Across Trafford Park, Salford, Bolton and Oldham, many warehouse operators are upgrading to fibre because copper systems are struggling to keep up. iSecurity Solutions is a trusted UK provider of commercial and domestic security systems, helping homes and businesses stay protected around the clock. Alongside CCTV, intruder alarms, fire safety, access control and construction site monitoring, the team designs and installs BICSI aligned fibre infrastructure that supports high bandwidth automation, integrated CCTV systems and future expansion without unnecessary disruption.

Fibre Optic Cabling For Warehouses

Warehouses in Greater Manchester are expanding rapidly due to e commerce growth, same day delivery and advanced automation. Traditional copper networks often struggle with long cable runs across large picking aisles, electrical interference from machinery and the high data demand of modern Warehouse Management Systems.

Optical fibre sends data using light through a glass core. As explained in Wikipedia’s overview of optical fibre, the light reflects within the core, allowing signals to travel much further with far less loss than copper. For warehouse operators, that means fewer slowdowns, fewer network cabinets and greater confidence during peak trading periods.

Why Fibre Beats Copper In Large BICSI Designed Warehouses

Copper cabling such as Cat6A works well for short connections, but it is limited to around 100 metres per run. In a large warehouse, that quickly leads to extra cabinets, more switches and increased power use. Fibre long run BICSI designs allow connections over hundreds or even thousands of metres using single mode OS2 fibre. This reduces the need for active equipment and improves overall resilience.

Fibre is also immune to electrical noise from motors, conveyors and high voltage equipment. That stability is vital in industrial settings where downtime can be extremely costly. If you are planning robotics, automation or real time tracking, a strong fibre backbone ensures the network does not become the weak point.

Single Mode Vs Multimode OM3 OM4 And OS2 Explained

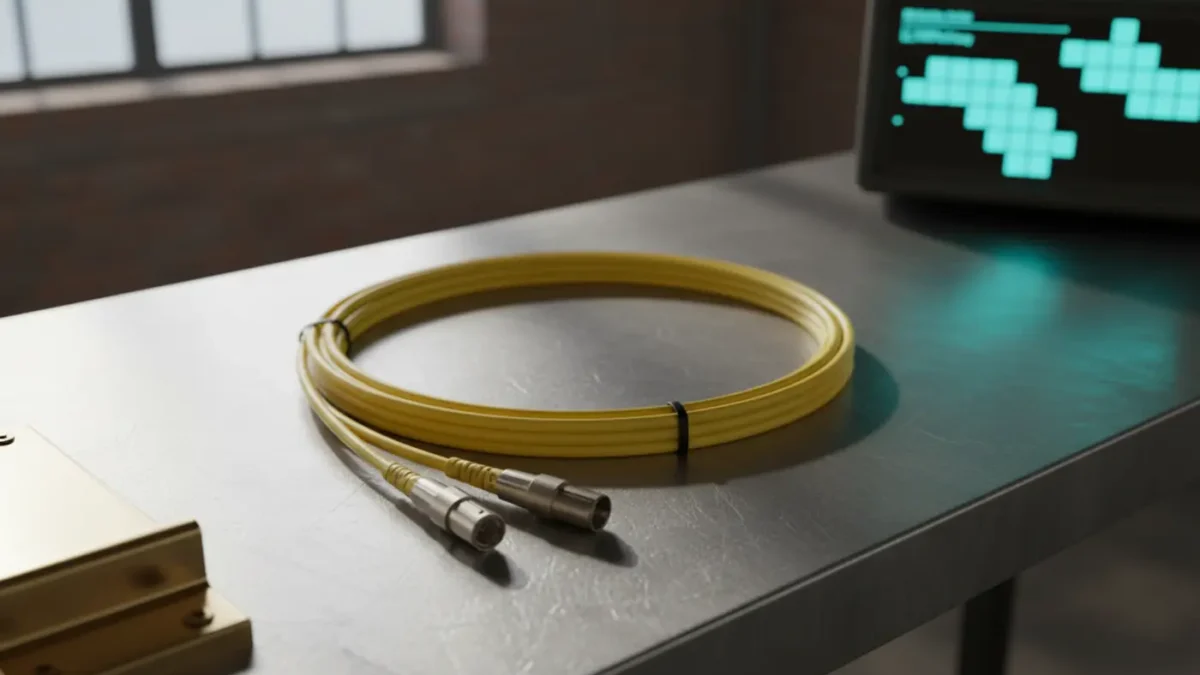

Multimode fibre such as OM3 and OM4 has a larger core and is usually used for shorter distances within a building. It is common for 10G links between cabinets on the same floor. Single mode OS2 has a much smaller core and is built for long distance and high capacity links, making it ideal for large warehouse backbones.

In practical terms:

• OM3 and OM4 multimode fibre suits shorter internal links
• OS2 single mode fibre is ideal where distances run into several hundred metres or more
• OS2 is often preferred where future 40G or 100G upgrades are planned

Many warehouses in Greater Manchester use a mix of both. Multimode may be used within zones, while single mode supports the main spine. The right option depends on your layout, growth plans and equipment. A proper survey and loss budget calculation ensures connector and splice losses remain within limits, especially when planning for high bandwidth automation.

Structured Cabling Design For Warehouses

Effective fibre installation is about more than just cable choice. It is about designing a network that flows properly. In large warehouses, spine and leaf topology is often used, aligned with structured cabling standards such as TIA 942. You may hear terms like MDA, HDA and ZDA, which simply refer to main, horizontal and zone distribution areas.

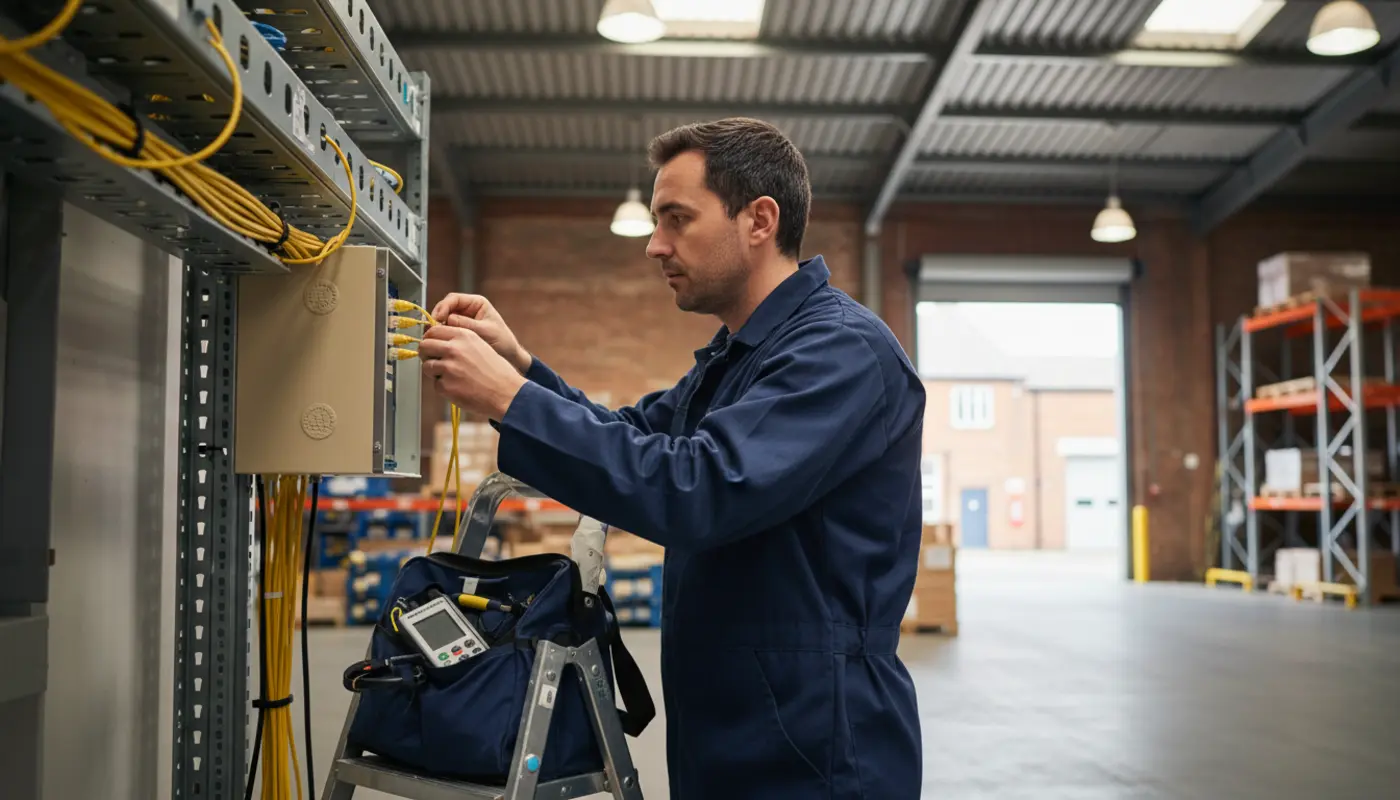

In practical terms, this usually means a central communications room acting as the hub, fibre backbone links running to zone cabinets along racking rows, and edge connections feeding WiFi access points, scanners, PLC panels and security systems. If you have reviewed Ethernet cabling for offices in Manchester, the same structured principles apply here on a larger industrial scale.

All installations are delivered by BICSI and Fluke Certified engineers, with full test certificates and as built drawings provided at handover. Clear documentation makes future expansion and troubleshooting far easier.

Warehouse Specific Installation Challenges

Warehouses present unique challenges. There are forklifts, pallet trucks, dust, temperature changes and constant movement. Fibre routing must be carefully planned to stay protected while remaining accessible for maintenance.

Common considerations include overhead cable trays to keep fibre safe, protected vertical drops to prevent impact damage, suitable cable jackets for dusty or temperature controlled areas and proper fire stopping where walls are penetrated. In chilled or freezer environments, materials must tolerate low temperatures without becoming brittle. Careful planning around vehicle routes reduces the risk of accidental damage and unwanted downtime.

Integration With WMS RFID And Automation

The warehouse network supports WMS platforms, barcode scanners, RFID gates and conveyor systems. During peak periods, thousands of data exchanges can take place every minute. A fibre backbone ensures that uplinks between access switches and the core do not become bottlenecks.

VLAN segmentation and resilient network paths help separate operational traffic from guest WiFi or office systems. When integrating IP cameras and analytics, it helps to understand system differences, as explained in IP cameras and CCTV explained, because high resolution video places significant demand on bandwidth.

PoE And Fibre Hybrid Infrastructure

While fibre carries data across long distances, edge devices still require power. A common design uses fibre to a zone cabinet, then Cat6A copper from a PoE switch to cameras, door controllers and WiFi 6 access points.

For warehouses installing monitored intruder alarm systems that comply with EN 50131 Grade 2 or Grade 3, and are installed as Insurance Approved and SSAIB certified solutions for Police Response URN eligibility, stable connectivity is essential. The same applies to perimeter detection and large scale IP CCTV systems. Further practical detail can be found in CCTV for warehouses in Manchester.

Procurement And Frameworks In Greater Manchester

Public sector buyers and framework projects often need to align with Crown Commercial Service routes or CIPS compliant procurement processes. A clear specification covering fibre type, containment, labelling, testing and warranty terms makes tender evaluation smoother and reduces future risk.

Projects under Greater Manchester Combined Authority may require approved supplier routes and documented compliance. Providing a detailed scope, timeline and certification standards at tender stage helps prevent delays once installation begins.

Installation Costs And Timelines In 2026

Costs depend on warehouse size, complexity and the level of automation involved. Typical elements include site survey and design, fibre supply per metre, containment systems, cabinets, terminations, patch panels, transceivers, testing and certification.

Single mode OS2 can be cost effective over long distances because it reduces the number of active cabinets required. OTDR and insertion loss testing confirm that performance meets specification, particularly where multiple connectors and splices are used.

Smaller single unit warehouses may complete installation within two to four weeks. Large multi building distribution centres can take several months and are often phased carefully to keep operations running smoothly.

Maintenance Testing And Future Proofing

After installation, regular inspection and cleaning of fibre connectors helps prevent performance issues. ISO IEC 14763 3 testing principles guide both acceptance and troubleshooting, supporting long term reliability.

Planning spare fibres and considering high density connectors allows easier upgrades to 40G or 100G in the future. Even if current needs are 10G, automation and data volumes will continue to grow. Preparing now avoids expensive retrofitting later.

It is also important to view the network alongside wider compliance. Data systems should sit within buildings that have properly designed fire alarm systems installed to BS 5839 Category L1 or L2 where required. Emergency lighting should be tested to BS 5266 with monthly and annual checks. Fire extinguishers should be serviced to BS 5306 and BAFE SP101 with annual insurance required certificates, and fire risk assessments documented under PAS 79. When these elements align, compliance becomes far more manageable.

Final Thoughts

Fibre optic cabling for warehouses in Greater Manchester is more than a technical upgrade. It is a practical investment in speed, reliability and future growth. With the right mix of single mode and multimode fibre, BICSI aligned design and full testing, your warehouse network can support automation, security systems and high density WiFi without constant adjustments.

With experienced design, certified installation and clear documentation, your infrastructure can scale as your operation grows, allowing you to focus on running the warehouse with confidence.
